Intermittent bonded ribbon production line explained
Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. provides equipment for producing rollable formats used in optical-fiber manufacturing. This setup is designed for 12- and 16-fiber ribbons, allowing buyers to compare its capacity against their planned product range. Its split-type construction may also affect factory space and installation requirements.
SZ Stranding Line Fiber Coloring Machine Compact Fiber Unit
The stated construction speed for this particular production line is 600 m/min. The process combines fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up. The full process is important to evaluate, not just the stated speed.
Factory utilities, reel requirements, available floor space, and installation conditions should be reviewed before purchase. Request the supplier’s documentation package and confirm that the system matches your cable design and operating needs. Early planning for these details can reduce setup delays and make startup smoother.
Key Takeaways
- Intended to produce rollable 12- and 16-fiber formats.
- Specified equipment speed: 600 m/min.
- Features a split-type construction.
- Includes curing, monitoring, pulling, and take-up stages.
- Before purchasing, verify utilities, reels, installation requirements, and supplier documentation.

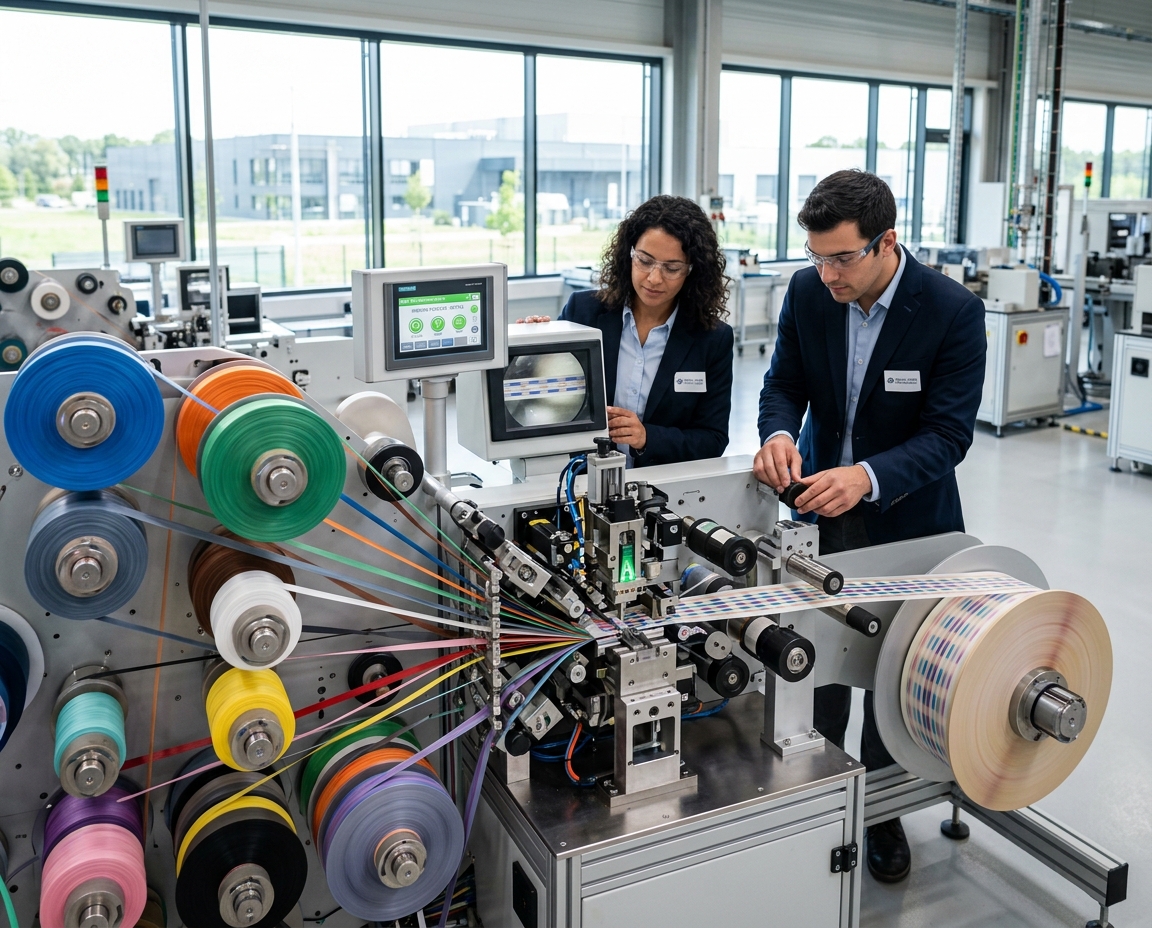

Intermittent Bonded Ribbon Production Line
Examine The Intermittent Bonded Ribbon Production Line
Three mold groups help shape rollable IBR formats by positioning fibers for small adhesive dots. Operators can adjust the mold position from 0 to 15 mm to support consistent spacing and shape.
Produce Rollable Fiber Ribbons With Precision Bonding
A 16-spool pay-off supplies fiber to the machine, while guide rollers with U-shaped grooves keep individual strands organized. Hard-anodized roller surfaces promote steady contact during processing. For 12F and 16F layouts, the adjustable valve setup uses 5+5+1 valves for 12 fibers or 5+5+5 for 16. Confirm the appropriate tension control settings with the supplier for your cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
Construction speed is specified at up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. T-type and fiber-optic take-up reels are also available for this system. Compare reel capacity with your operational requirements and expected changeover time.
Examine The Production Line’s Main Equipment And Controls
Tension, resin placement, and UV exposure must work together to deliver reliable output. Operators can use the system to align settings with the needs of their cable design and fiber ribbon.
Manage Fiber Tension, Resin Dispensing, And UV-LED Curing Together
Electro-pneumatic adjustment is used for each pay-off unit. Dispensers can run independently or in linked groups, with adhesive-dot spacing and counts configured through the interface.
Three pre-curing ovens serve the mold groups ahead of UV-LED post-curing. Verify resin compatibility and operating conditions with the supplier.
Lamp current, oven temperature, alarms, and preset lengths are displayed or managed through the Siemens PLC and touchscreen. Before purchase, review cabinet requirements and power supply needs.
| Process Stage | Technical Specification | Buyer check |
| Fiber tension | Pay-off tension: 0.4 to 2 N with ±0.02 N; capstan tension: 50 to 500 g with ±5 g accuracy | Align settings with cable requirements |
| Dispensing of resin | Individually operated or linked units with adjustable adhesive-dot spacing and count | Check interface configuration |
| UV-LED curing | Three 800 W pre-curing ovens; one 6 kW post-curing oven; 395 nm ± 3 nm; at least 85% cure under stable, high-speed conditions | Confirm resin compatibility |
| Process monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; live lamp current and oven temperature, alarms, preset lengths | Check cabinet and power supply |
Plan Installation, Operating Conditions, And Line Configuration
Before the machine is delivered, set aside a dedicated operating area. The optical fibre system requires an enclosed, clean, dry, and draft-free space. Keep the temperature from 15°C to 25°C, with humidity at or below 85%. Maintaining these conditions helps preserve equipment protection and operating precision.
With your facilities team, assess site utilities, available electrical capacity, cabinet space, and cable design. The system needs nitrogen supplied at 7 bar and 99.99% purity, together with compressed air at 6 bar. A three-phase, five-wire electrical supply rated 380 V ±10% is required.
- Allow space for the cabinet, components, resin, and access to service parts. Verify temperature settings and tension control before startup.
- Account for the specified reel size of Φ410 mm × Φ50.8 mm × 391 mm. The take-up unit supports reels weighing up to 30 kg.
- Account for the main power feed-in cable when preparing the site. The equipment package excludes connection cables and cable trays.
Before ordering, verify the supply scope, reel types, and installation requirements. This assessment can reduce setup time and help prevent later delays. Ask the supplier to verify settings for your fiber and cable design, including lamp accuracy and operating conditions. Clear planning enables a smoother startup for the production system.
Request Pricing For A Ribbon Production Solution Tailored To Your Needs
At its stated speed of 600 m/min, this line can be considered by manufacturers producing rollable 12- or 16-fiber formats. Share details of your fiber layout, output targets, cable requirements, reel preferences, and factory conditions to request a quotation.
Check the proposed system for its 16-spool pay-off, UV-LED curing setup, take-up capacity, and included options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
The documentation list includes operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. Reviewing these documents can clarify setup time and future service requirements.
For pricing and configuration details matched to your production plan and site utilities, contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Before buying, confirm the scope of supply and replacement parts.
